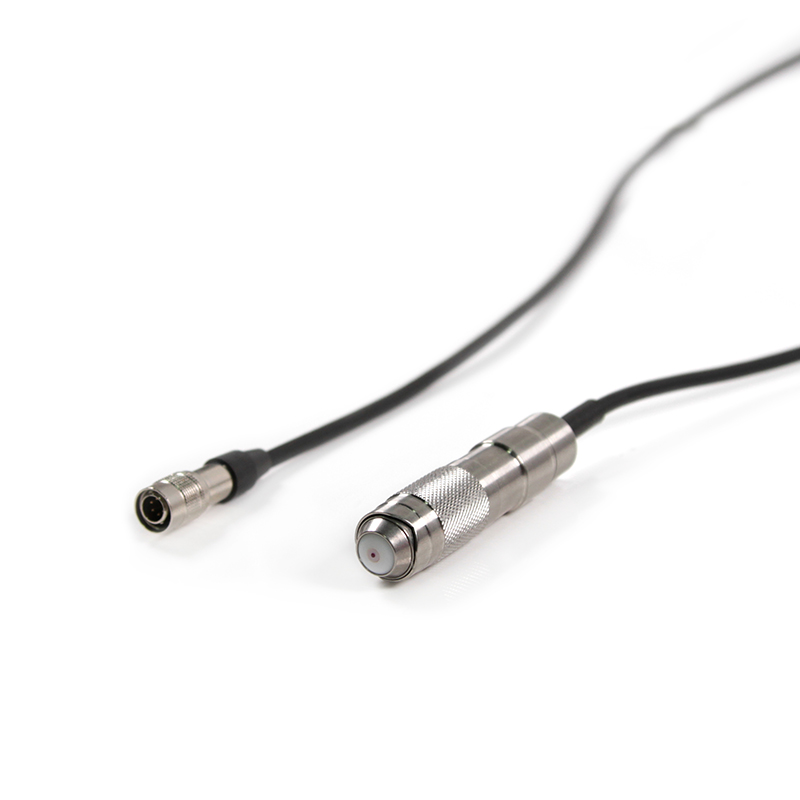

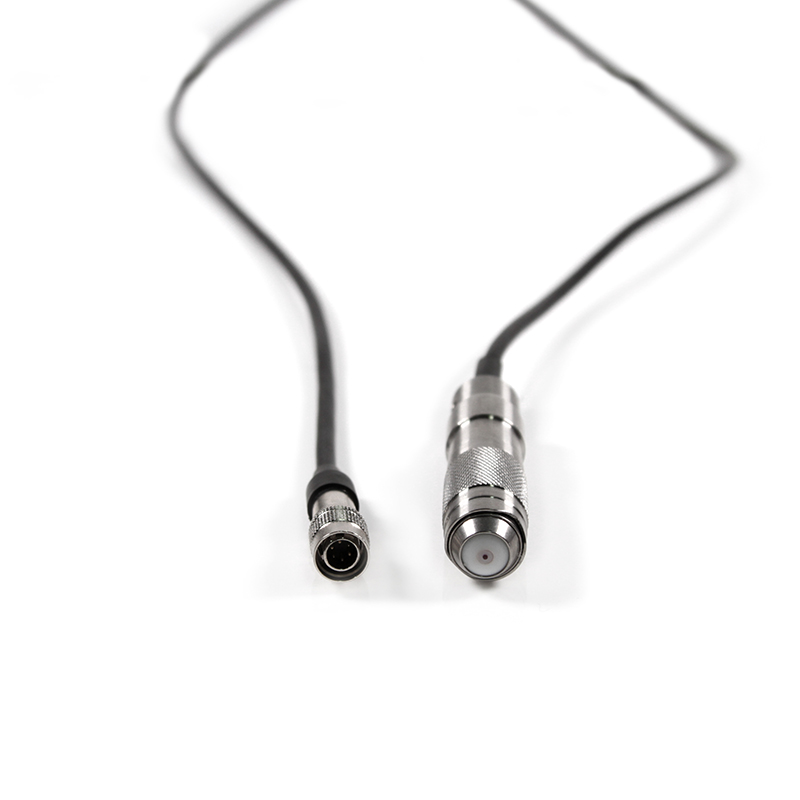

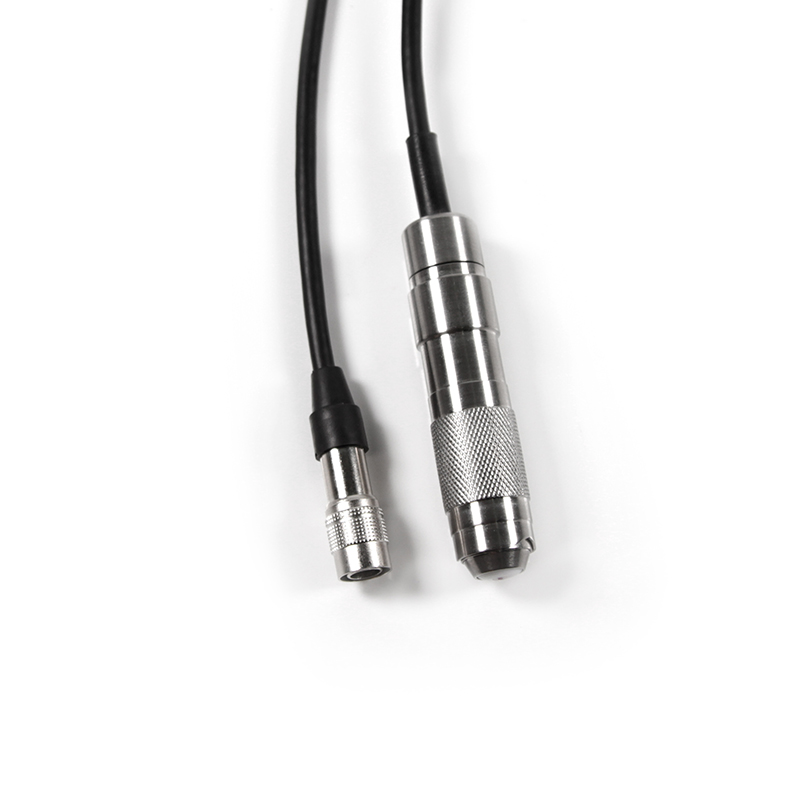

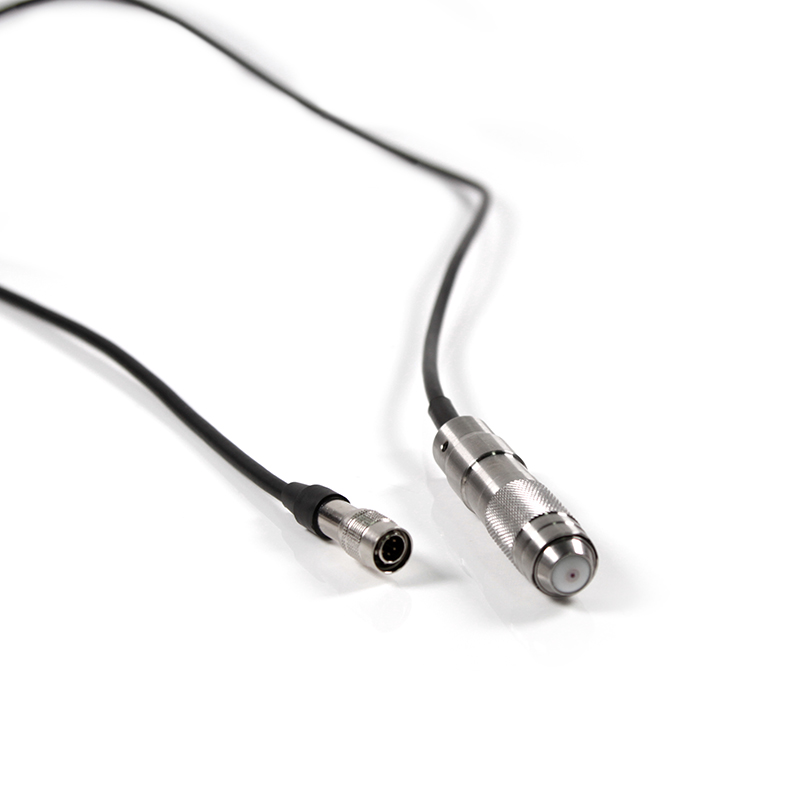

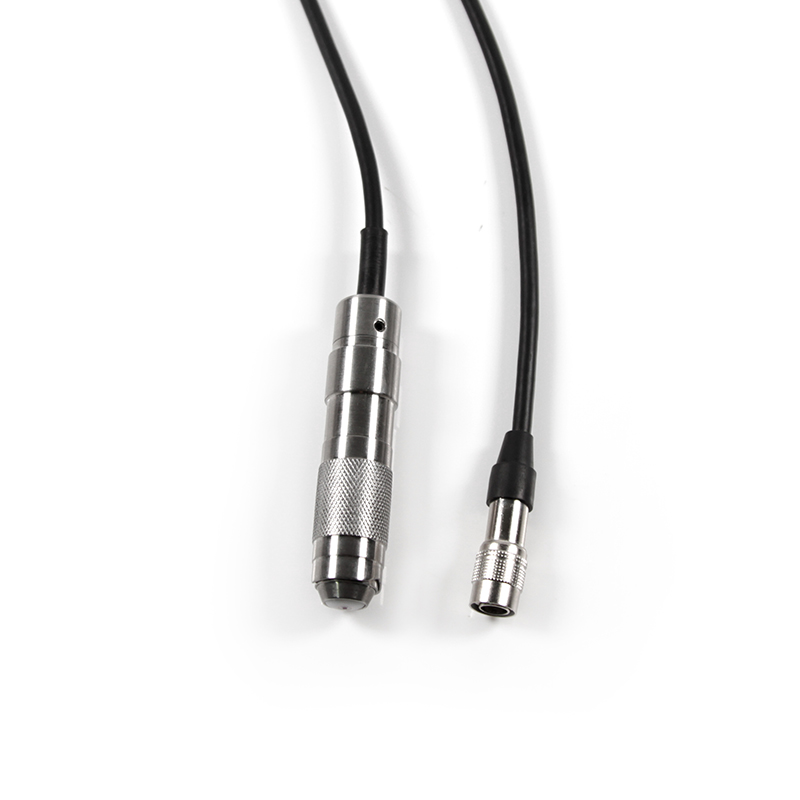

Non-ferrous probe N1
N1 probe works on the eddy-current principle and should be used for insulating coatings on all non-ferrous metals;
F1 probe or N1 probe can be the standard config.
Measuring range (um):0-1250μm;
Min curvature of the min area(mm):3mm;
Critical thickness of substrate (mm):0.3mm;
Diameter of the min area (mm): Φ5;
Probe cable length: 90cm;
It is plated with hard chrome, durable, not easy to wear;
The error caused by the probe is small, the measured value is accurate;
N1 probe is made of metal which can effectively protect the probe, corrosion-resistant and vibration-proof, durable;
It is widely used in measuring the rubber layer and paint layer and other non-conductive coating thickness on aluminum, copper and other conductive materials;
In the manufacturing and metal processing industry, chemical industry, commodity inspection and other detection areas and material protection in the professional scientific research, it is necessary precision instrument.
F1 probe or N1 probe can be the standard config.
Measuring range (um):0-1250μm;
Min curvature of the min area(mm):3mm;
Critical thickness of substrate (mm):0.3mm;
Diameter of the min area (mm): Φ5;
Probe cable length: 90cm;
It is plated with hard chrome, durable, not easy to wear;
The error caused by the probe is small, the measured value is accurate;
N1 probe is made of metal which can effectively protect the probe, corrosion-resistant and vibration-proof, durable;
It is widely used in measuring the rubber layer and paint layer and other non-conductive coating thickness on aluminum, copper and other conductive materials;
In the manufacturing and metal processing industry, chemical industry, commodity inspection and other detection areas and material protection in the professional scientific research, it is necessary precision instrument.
Adaptive Products
-
MCT200 Coating Thickness Gauge
×
