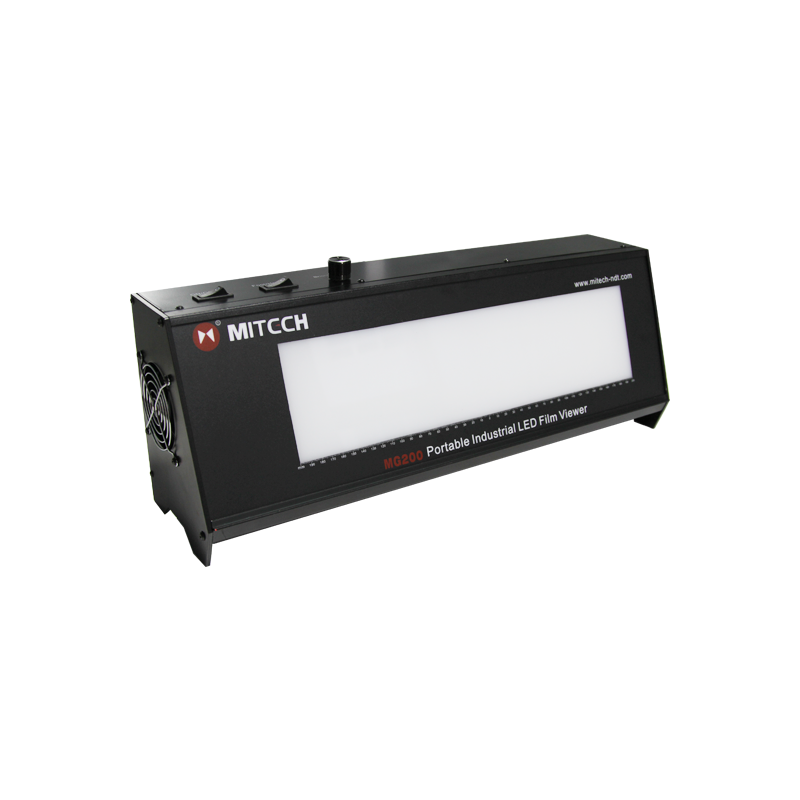

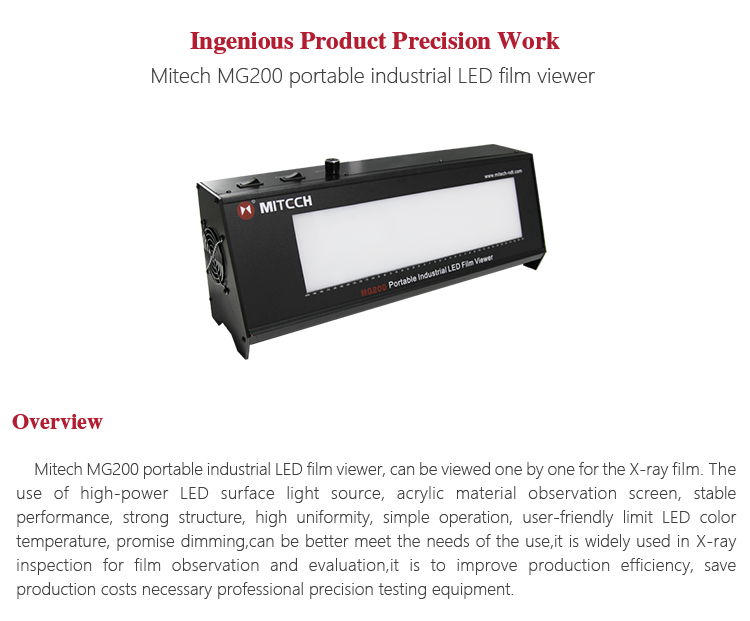

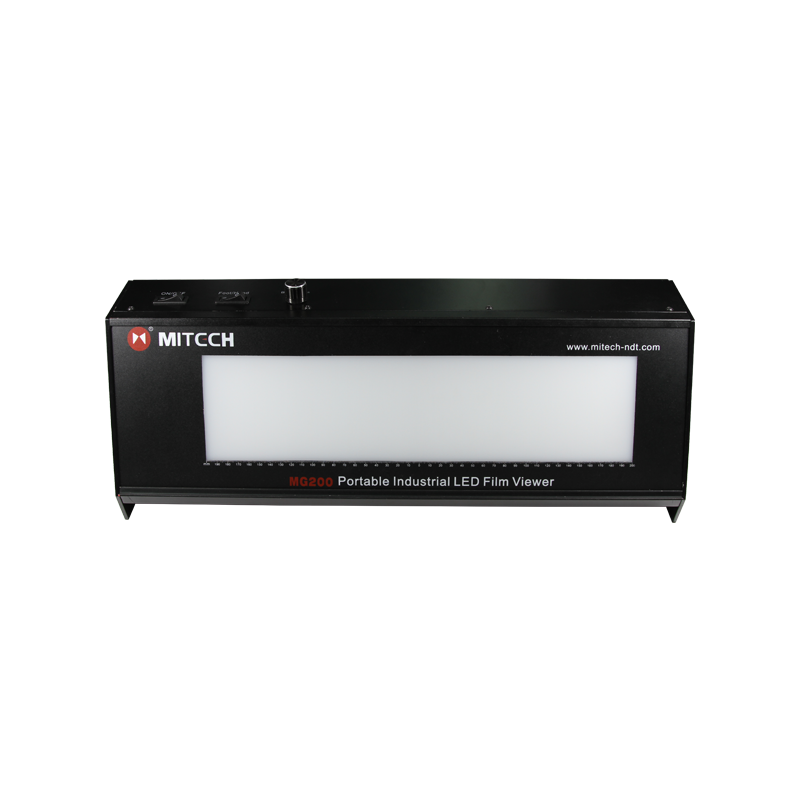

Mitech MG200 portable industrial LED film viewer, can be viewed one by one for the X-ray film. The use of high-power LED surface light source, acrylic material observation screen, stable performance, strong structure, high uniformity, simple operation, user-friendly limit LED color temperature, promise dimming,can be better meet the needs of the use,it is widely used in X-ray inspection for film observation and evaluation,it is to improve production efficiency, save production costs necessary professional precision testing equipment

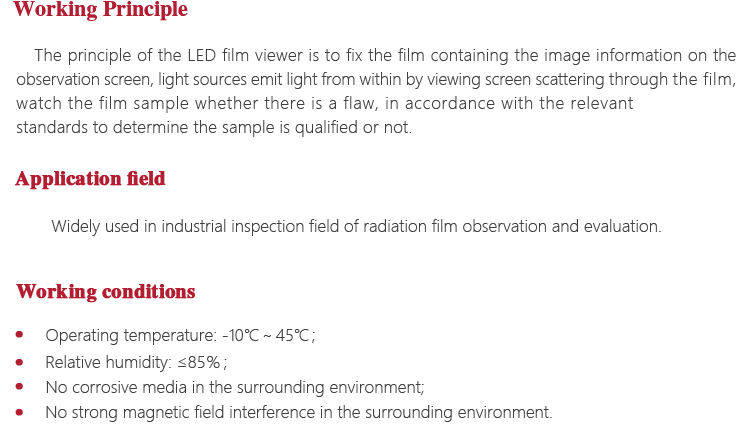

The principle of the LED film viewer is to fix the film containing the image information on the observation screen, light sources emit light from within by viewing screen scattering through the film, watch the film sample whether there is a flaw, in accordance with the relevant standards to determine the sample is qualified or not

<!--[if !supportLists]-->l <!--[endif]-->Operating temperature: -10℃～45℃；

l Relative humidity: ≤85％；

l No corrosive media in the surrounding environment;

l No strong magnetic field interference in the surrounding environment.

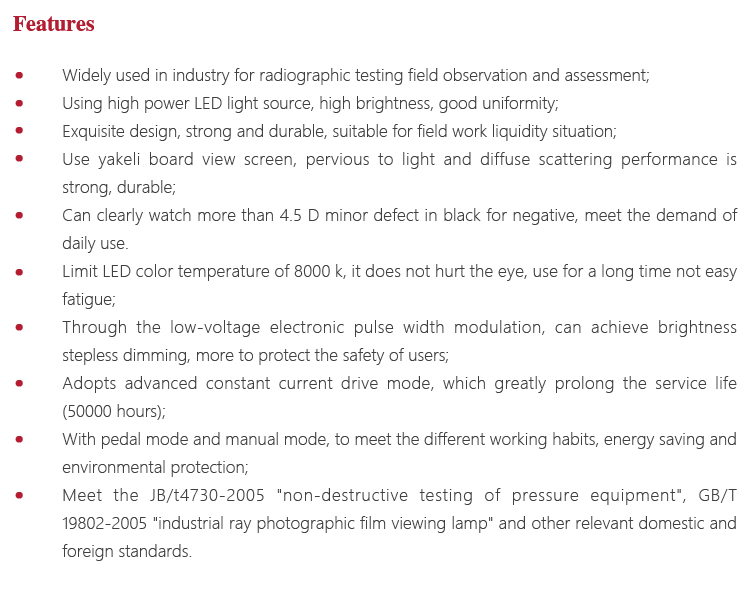

l Widely used in industry for radiographic testing field observation and assessment;

l Using high power LED light source, high brightness, good uniformity;

l Exquisite design, strong and durable, suitable for field work liquidity situation;

l Use yakeli board view screen, pervious to light and diffuse scattering performance is strong, durable;

l Can clearly watch more than 4.5 D minor defect in black for negative, meet the demand of daily use.

l Limit LED color temperature of 8000 k, it does not hurt the eye, use for a long time not easy fatigue;

l Through the low-voltage electronic pulse width modulation, can achieve brightness stepless dimming, more to protect the safety of users;

l Adopts advanced constant current drive mode, which greatly prolong the service life (50000 hours);

l With pedal mode and manual mode, to meet the different working habits, energy saving and environmental protection;

l Meet the JB/t4730-2005 "non-destructive testing of pressure equipment", GB/T 19802-2005 "industrial ray photographic film viewing lamp" and other relevant domestic and foreign standards

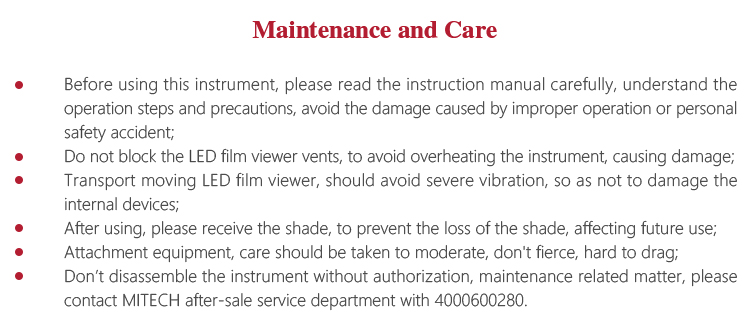

l Before using this instrument, please read the instruction manual carefully, understand the operation steps and             precautions, avoid the damage caused by improper operation or personal safety accident;

l Do not block the LED film viewer vents, to avoid overheating the instrument, causing damage;

l Transport moving LED film viewer, should avoid severe vibration, so as not to damage the internal devices;

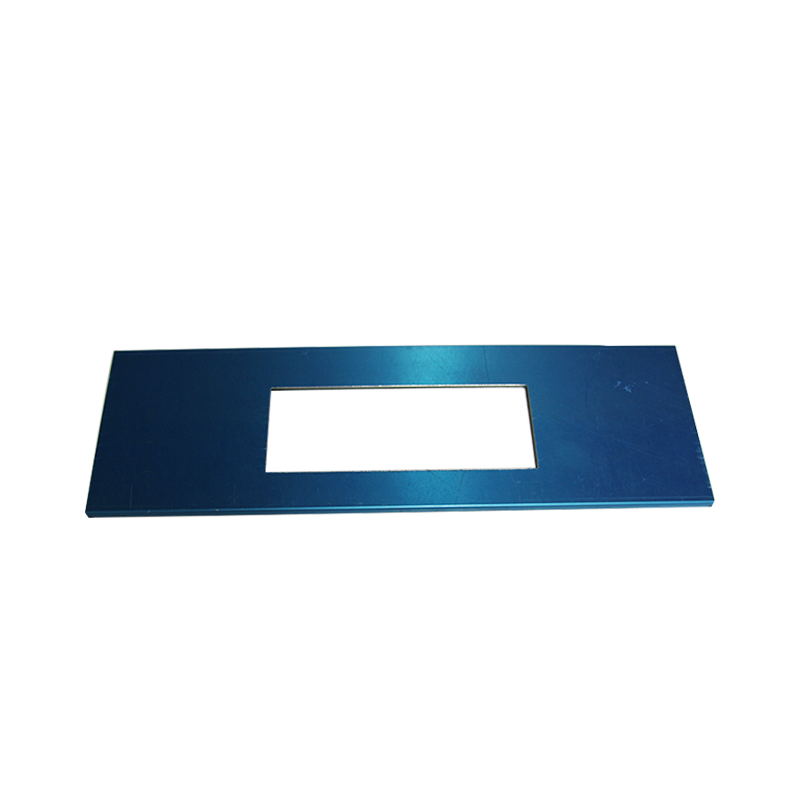

l After using, please receive the shade, to prevent the loss of the shade, affecting future use;

l Attachment equipment, care should be taken to moderate, don't fierce, hard to drag

       l Don’t disassemble the instrument without authorization, maintenance related matter, please contact MITECH after sale service department with 4000600280.
